Keypad Proximity Kit C/W Fail Secure Strike Release

Description

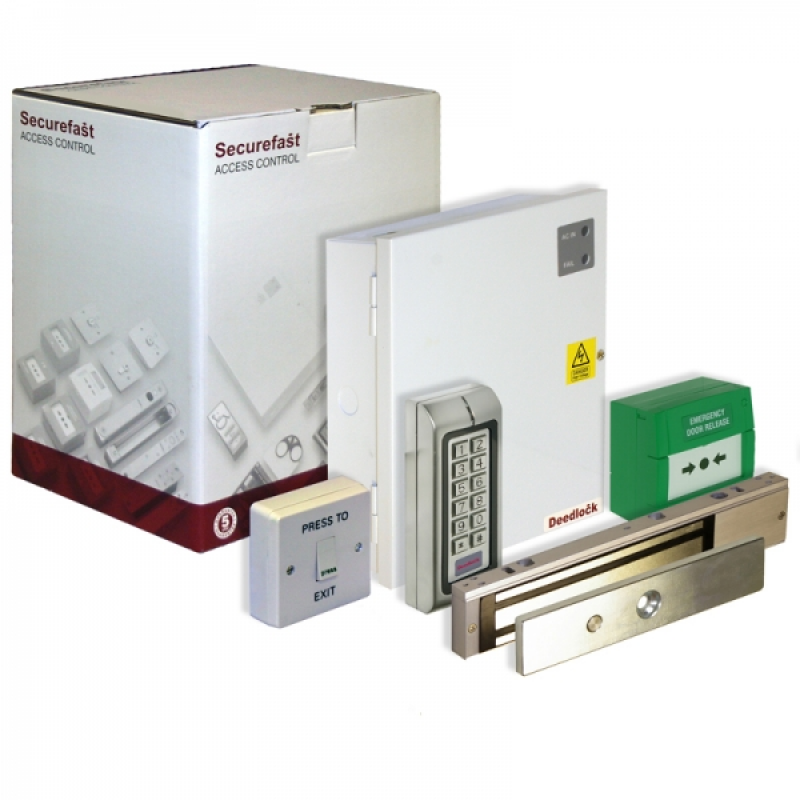

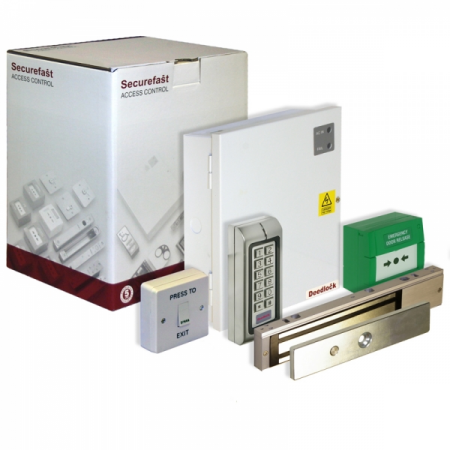

This Electronic Keypad Proximity Kit with Magnetic Lock is suited for single doors and up to 500 users. It is supplied with a surface magnet that has a holding force of 300kg. An emergency exit button and break glass dual unit is supplied complete with a built in light and buzzer while offering a simple wiring solution. All products in this kit have been checked for compatibility and with full wiring and programming instructions included it makes installation an easy process.

Included in this Keypad Kit is:

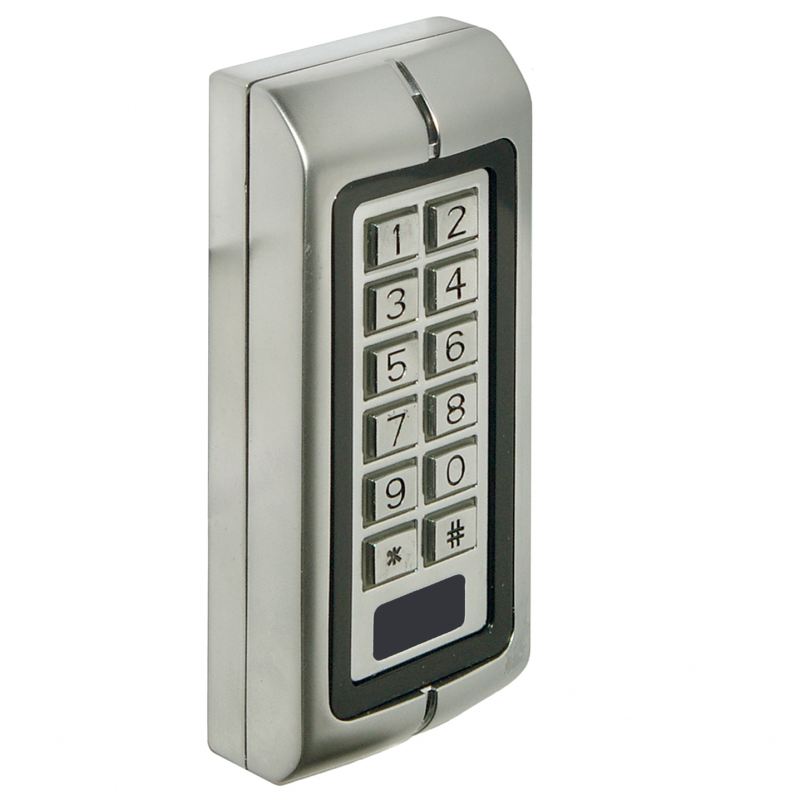

APX-16 Electronic Keypad - XM010160

Waterproof conforms to IP68
Strong zinc alloy electroplated anti-vandal case
Two relay operation
Relay can be programmed for different modes
1200 users
PIN length 4-8 digits
Pulse mode & Toggle mode
Backlight Keypad
Adjustable door relay output time, alarm time, door open time
Built in light dependent resistor for anti tamper
Built in buzzer
Two relay output for door opening time, door status detecting, open door by button
Red, Yellow and Green LED display the working status
Support door bell connection
12/24v DC / 18v Power Input
Two Year Warranty

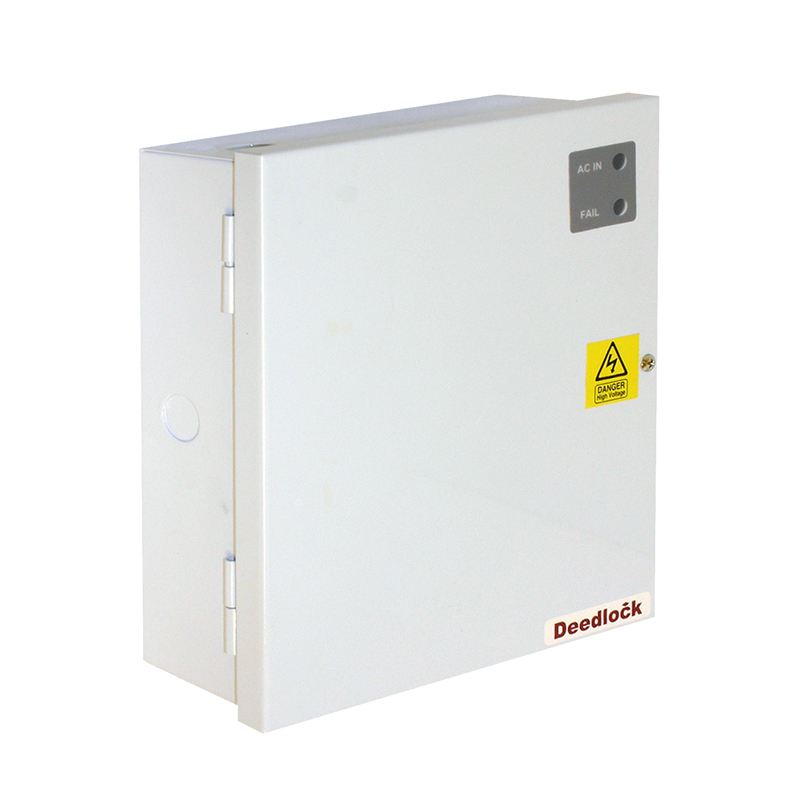

12v 1amp Power Supply Small Case - XP010120

Features a hinged lid
Includes an efficient switch mode operation
Front tamper protection included
Main status indication - LED
Universal mains voltage input 90V Â 264V ac
Supplied with a full rated current to load
Suitable for general purpose applications

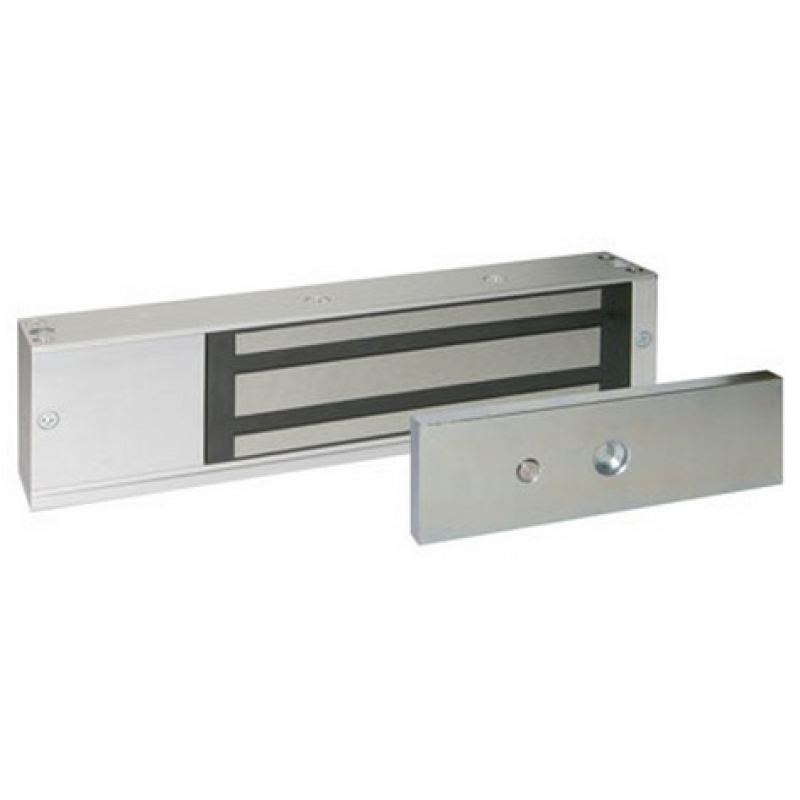

300kg Surface Magnet - XB150062

Low maintenance magnet
For use on timber and metal doors
CE marked
Dual voltage of 12V & 24V DC
Holding force of 300kg
Ideal for inward and outward opening doors
Includes safety bolts

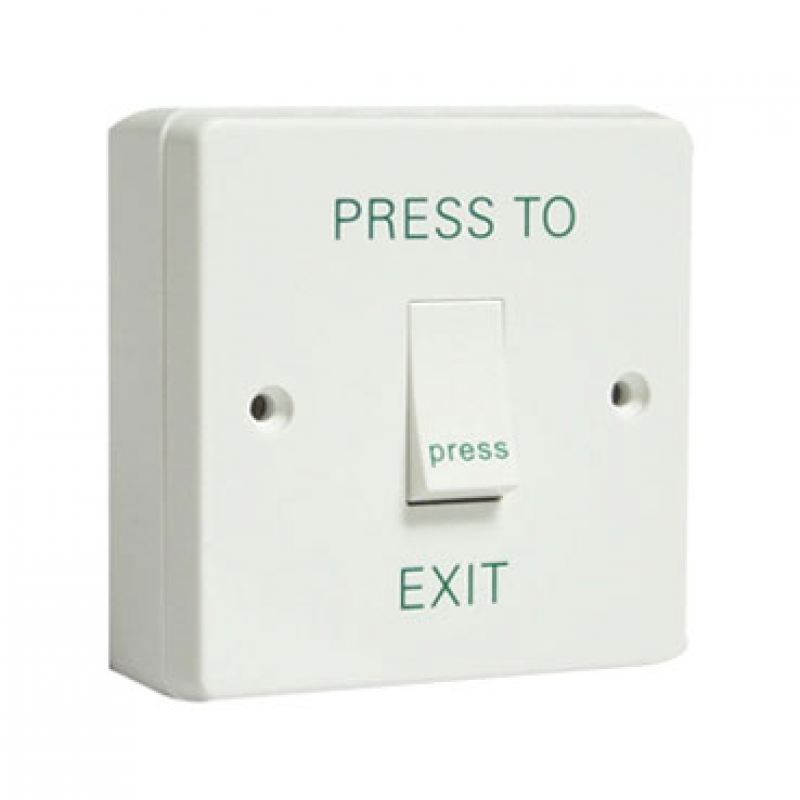

Exit Button Switch c/w Surface Box - XM010030

Complete with white surface back box
Current @30v AC/DC - 4 amps
Contacts - double pole NO/NC
Internal use only
Dimensions 85 x 85 x 41mm

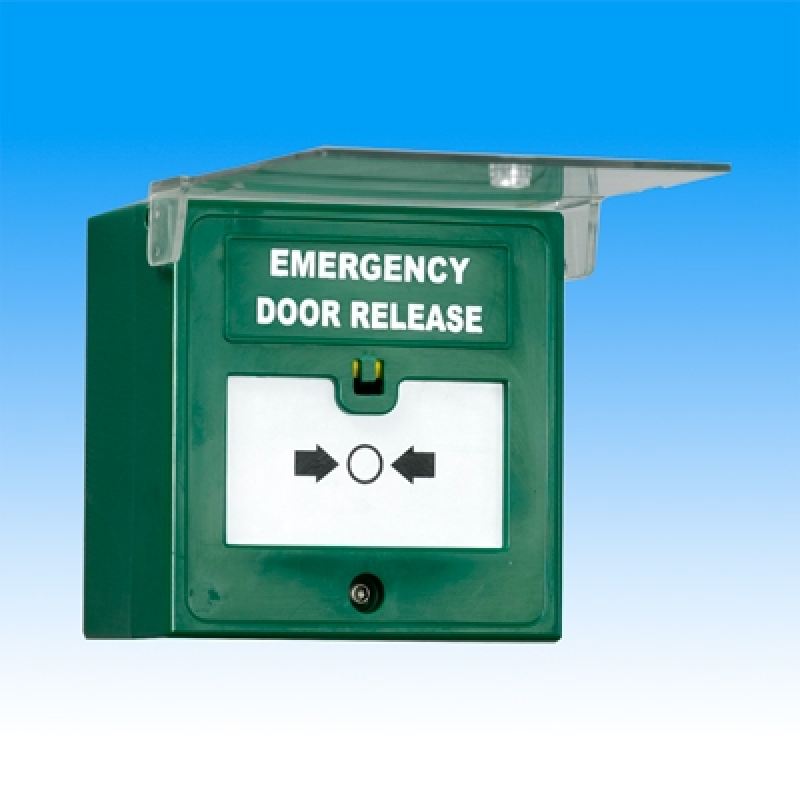

Green Call Point Single Pole - XM010080

Emergency Door Release Button (EDR)
Resettable With Front Cover
12 or 24V DC
Buzzer and LED Indictaion
Single Pole
Complete with surface back box

Product Specification

Product Infomation

Brand

Securefast

Warranty Period

1 Year

Access Control Features

Product Type

Access Control Kit

Fail Safe / Fail Secure

Fail Safe

Holding Force

300kg

Users

1100

Back Lit

Yes

Relays

Anti Vandal

Yes

Material

Metal

Output Voltage

13.8v dc

Output Amps

1 Amp

Number of Fused Outputs

Battery Charging

Yes
