AKT4227 Electronic Keypad Kit C/W Surface Magnet Lock

Product Code: XB100290
£173.56 Ex. VAT

Delivery Friday, 28 June

FREE Delivery
Please Select a
Amount above maximum available. Please lower quantity
Add to Basket
Product Specification
Delivery & Returns


This Electronic Keypad Kit with Magnetic Lock is suited for single doors and up to 500 users. It is supplied with a surface magnet that has a holding force of 300kg. An emergency exit button and break glass dual unit is supplied complete with a built in light and buzzer while offering a simple wiring solution. All products in this kit have been checked for compatibility and with full wiring and programming instructions included it makes installation an easy process.

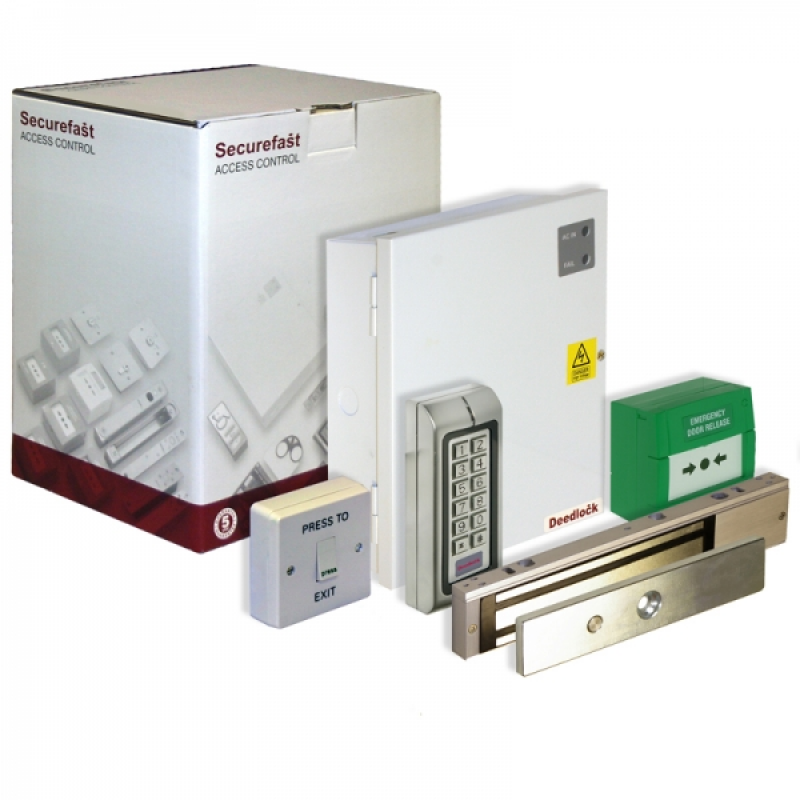

Included in this Keypad Kit is:

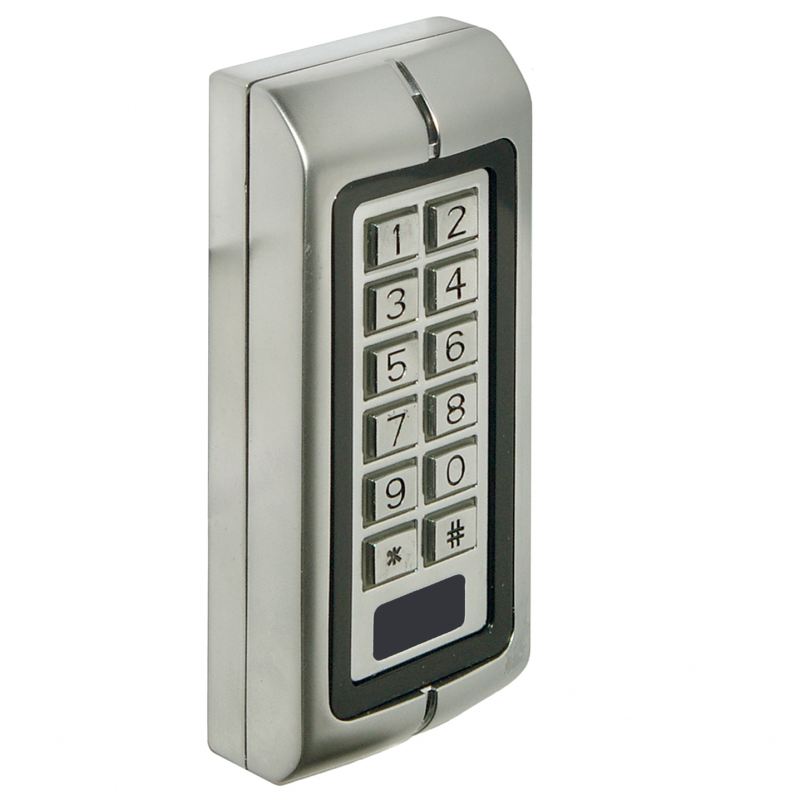

APX-16 Electronic Keypad - XM010160

  • Waterproof conforms to IP68
  • Strong zinc alloy electroplated anti-vandal case
  • Two relay operation
  • Relay can be programmed for different modes
  • 1200 users
  • PIN length 4-8 digits
  • Pulse mode & Toggle mode
  • Backlight Keypad
  • Adjustable door relay output time, alarm time, door open time
  • Built in light dependent resistor for anti tamper
  • Built in buzzer
  • Two relay output for door opening time, door status detecting, open door by button
  • Red, Yellow and Green LED display the working status
  • Support door bell connection
  • 12/24v DC / 18v Power Input
  • Two Year Warranty

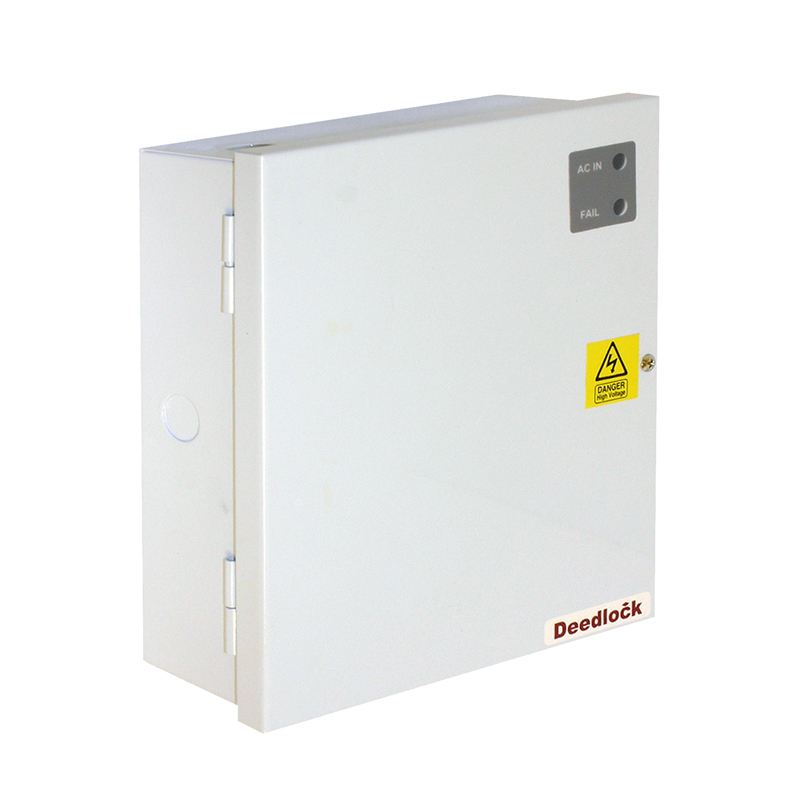

12v 1amp Power Supply Small Case - XP010120

  • Features a hinged lid
  • Includes an efficient switch mode operation
  • Front tamper protection included
  • Main status indication - LED
  • Universal mains voltage input 90V – 264V ac
  • Supplied with a full rated current to load
  • Suitable for general purpose applications

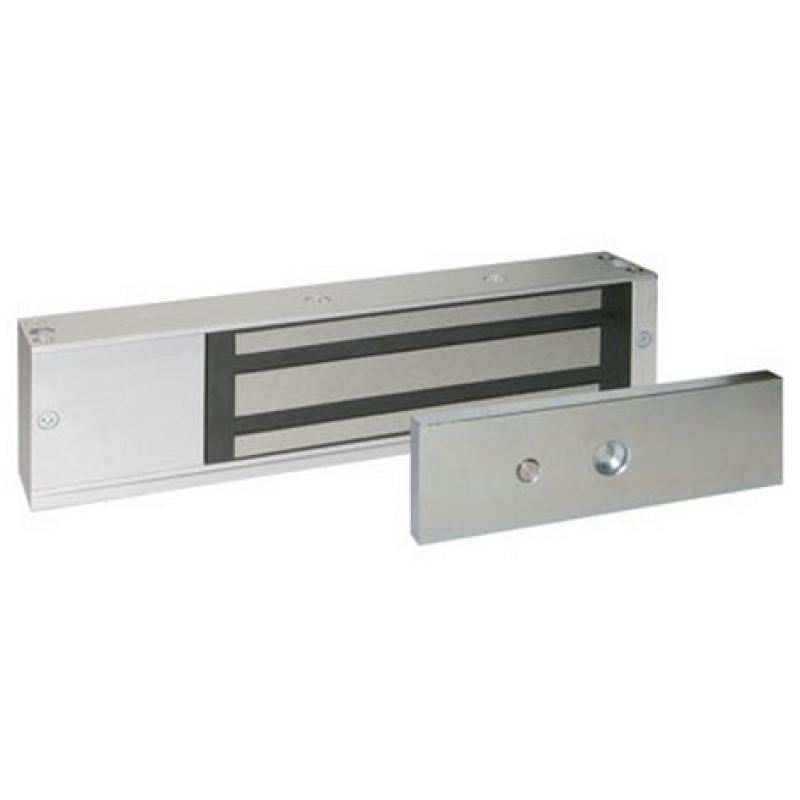

300kg Surface Magnet - XB150062

  • Low maintenance magnet
  • For use on timber and metal doors
  • CE marked
  • Dual voltage of 12V & 24V DC
  • Holding force of 300kg
  • Ideal for inward and outward opening doors
  • Includes safety bolts

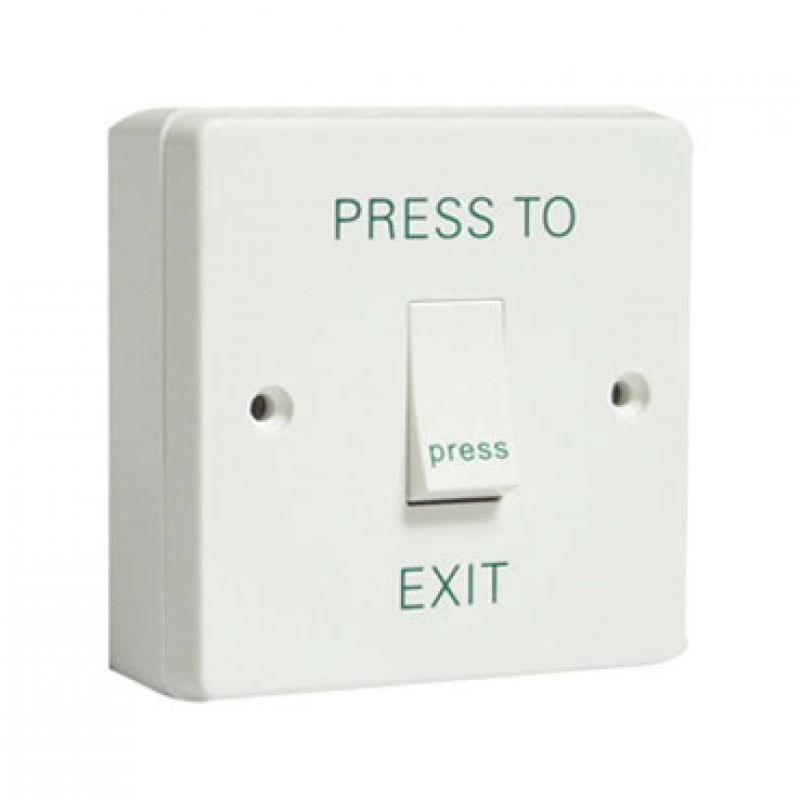

Exit Button Switch c/w Surface Box - XM010030
  • Complete with white surface back box
  • Current @30v AC/DC - 4 amps
  • Contacts - double pole NO/NC
  • Internal use only
  • Dimensions 85 x 85 x 41mm

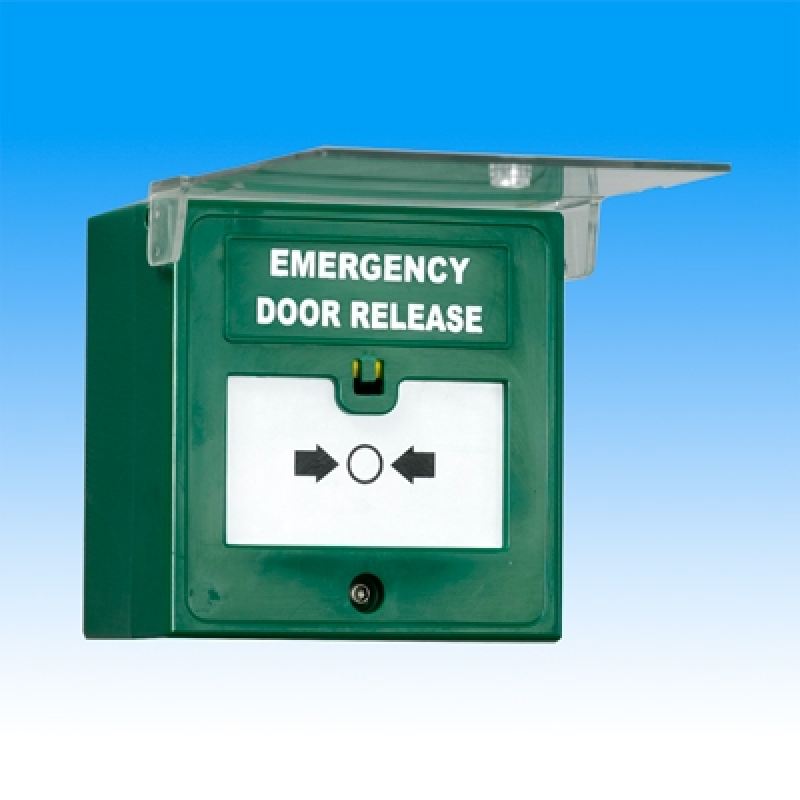

 Green Call Point Single Pole - XM010080
  • Emergency Door Release Button (EDR)
  • Resettable With Front Cover
  • 12 or 24V DC
  • Buzzer and LED Indictaion
  • Single Pole
  • Complete with surface back box

Product Specification

Product Infomation

Warranty Period
1 Year

Access Control Features

Product Type
Access Control Kit
Fail Safe / Fail Secure
Fail Safe
Holding Force
User Codes
Code Length
Back Lit
Anti Vandal
Output Voltage
13.8v dc
Output Amps
1 Amp
Number of Fused Outputs
Battery Charging

Delivery & Returns

Click & Collect in Store

Order and collect your items in store at Norwich, Ipswich or Colchester

Standard UK Delivery

Delivery Friday, 28 June
Additional Services available at Checkout. Delivery to Scottish Highlands, UK Islands and Ireland is subject to an Additional Cost. Read Full Delivery Information
If you change your mind you can return your items within 14 days of receipt. Returned items must be unused and complete with their original packaging. Read Returns and Refunds
