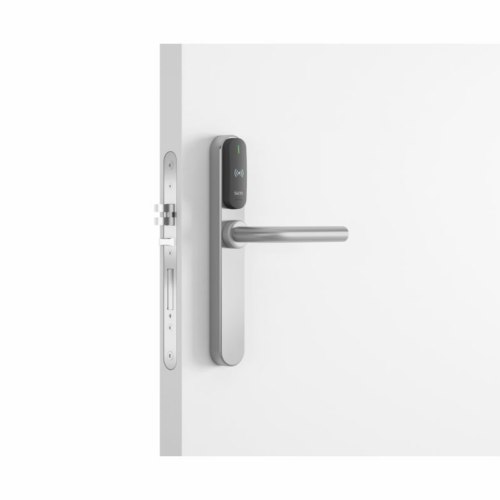

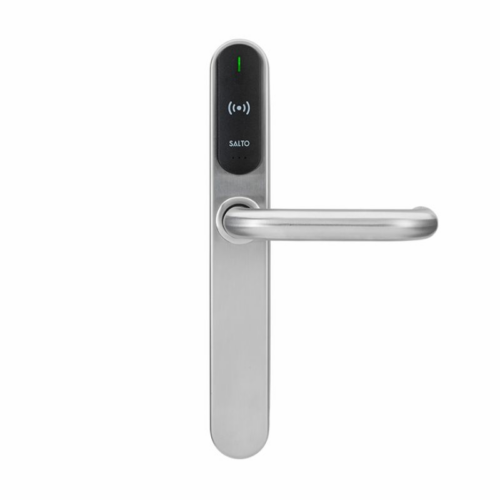

The XS4 Original product line is a universally compatible advanced smart locking system delivering next-generation access control technology in a market-proven solution. Unique, simple to install and retrofit, and featuring a sleek design, the XS4 Original platform integrates all your physical security needs through wireless networked, stand-alone locks giving you real-time access control for virtually all the doors in your building.

Features

• Simple installation is possible on any type of door, including those with narrow frames.
• Body and escutcheon made of steel.
• Available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available.
• Mechanical or electronic privacy option.
• The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).
• Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.
• IP Rated

Technical Characteristics

• Covers door thicknesses: From 32mm up to 120mm.
• Dimensions: 282mm x 40mm x 20mm.
• Reversible handle left or right escutcheon.
• Clutch mechanism escutcheon; when unlocked handle moves freely.
• Distance from the handle to the cylinder: 47mm to 110mm.
• Compatible with DIN and European mortise locks, mortise locks with Swiss profile cylinder, Australian standard mortise locks and narrow style mortise lock.
• Compatible with European profile and Swiss profile cylinders.
• Square spindles available: 7mm, 7.6mm split (Australia), 8mm, 8mm split (Euro & ANSI), 9mm and 9mm split.
