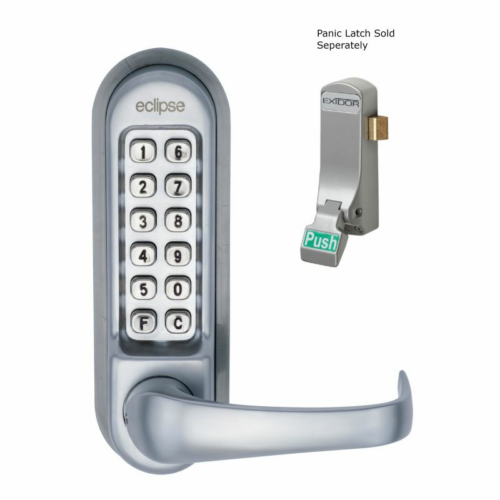

Eclipse ED50PK Heavy Duty Lever Operated Mechanical Digital Lock for use with Panic Hardware – Satin Chrome
Eclipse ED50PK Heavy Duty Lever Operated Mechanical Digital Lock for use with Panic Hardware – Satin Chrome
The ED50 Heavy Duty Mechanical Door Lock offers a secure and high-quality solution for access control in public buildings including hospitals, schools, care homes, and offices. Mechanically designed f
The ED50 Heavy Duty Mechanical Door Lock offers a secure and high-quality solution for access control in public buildings including hospitals, schools, care homes, and offices. Mechanically designed for heavy-duty use, this lock is manufactured out of zinc alloy featuring a strong lever that allows for easy access. Including a coordinated rubber backplate that offers weather protection, this lock is ideal for use in both internal and external settings. This mechanical lock can be used with panic hardware that uses an 8mm spindle, fire escape lock cases as well as a stand-alone security device.
- Material: Zinc alloy
- Supplied with fitting instructions/combination code, Digital Lock with Latch, and fixing screws
- 178mm (H) x 48mm (W) x 90mm (D)
- Lever Length: 107mm
- Passage free option
- Universal Lever Handle
- 60-70mm Latch Backset
- Suitable for doors upto 60mm in thickness
- Over 8000 Possible Codes
- Suitable For Internal & External Use
- Satin Chrome
- 11 Buttons
- No batteries required
- Compatible with panic hardware & lock cases
Additional information
| Dimensions | 48 × 178 mm |
|---|---|
| Finish | Satin Chrome |
| Condition | new |
| Warranty | 1 Year |
| Backset | 60mm / 70mm |
| Fixings Included | Yes |
| No of User Codes | 1 |
| Internal Use | Yes |
| Locking Type | Latch |
| External Use | Yes |
| Outside Operation | Code |
| Inside Operation | Free Exit |
| Outside Handle | Lever |
| Inside Handle | Lever |
| Handing | Not Handed |
| Depth | 90mm |
| Width | 48mm |
| Height | 178mm |
| Code Length | 4 |
| Delivery Type | Standard |
| Latch Hold Back | Yes |
| Key Override | No |
| Door Thickness | Up to 60mm |
