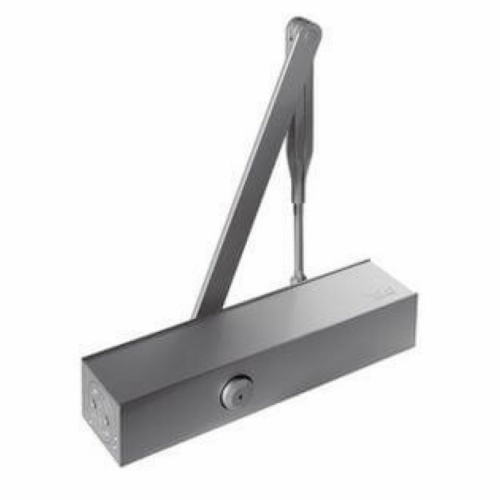

Dorma TS83 BC EN2-5 Silver Door Closer 38060501

dorma

Product Code: DB010365

Dorma TS83 BC EN2-5 Silver Door Closer 38060501

dorma

Product Code: DB010365

The Dorma TS83 Size 2-5 Door Closer can be altered to suit almost every door type. This unit comes supplied with back check as standard where the resistance developed is directly proportional to the a

The Dorma TS83 Size 2-5 Door Closer can be altered to suit almost every door type. This unit comes supplied with back check as standard where the resistance developed is directly proportional to the acceleration as the door is opened beyond 70°. This will help to protect the wall and door frame when required whilst also staying imperceptible if not required.

To ensure your building is safe for fire emergencies, the TS83 is one of the vital products to use. But this closer does not have specific requirements of what door it needs to be employed to compared to alternative door closers that will only be installed onto wooden doors, it just does the job for you, simple!

Dorma TS83 Size 2-5 Door Closer (38060501)

  • Easy to install
  • Finished in silver
  • Can be tailored to the requirements of the door with simple adjustment
  • Non-handed
  • Standard, frame and parallel fix out of the box
  • Maximum door weight – 100mm
  • Maximum door width – 1400mm

The TS83 from Dorma is also available in these finishes.

  • Satin stainless
  • Polished brass
  • Polished chrome
  • Coloured

Call to order any of the listed alternative finishes.

In Stock for Collection:
Colchester
Ipswich
Norwich
Monday-Friday 8am-5pm
In Stock for Delivery on Monday, 11th August
Price: £179.38
£149.48 Ex. VAT

Additional information

Finish

Silver

Condition

new

Warranty

1 Year

CE Marked

Yes

Power Size

03-Jun

Mechanism

Rack & Pinion

Suitable For Application 1

Yes

Suitable For Application 6 / 66

Yes

Suitable For Application 61

Yes

Angle Of Opening

180?

Fire Tested

120 Minutes

Power Adjustable By Spring

Yes

Adjustable Closing Speed

No

Adjustable Delayed Action

No

Maximum Door Width

1250mm

Maximum Door Weight

100 kg

Adjustable Latch Action

Yes

Adjustable Back Check

Yes

Delivery Type

Standard
