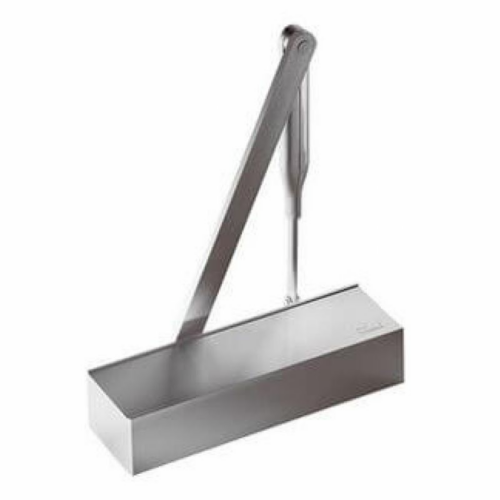

Dorma TS72V Size 2-4 Silver Door Closer 22235901
Dorma TS72V Size 2-4 Silver Door Closer 22235901
As it is a legal requirement to keep your fire doors closed in commercial settings the Dorma TS72V Door Closer is vital for fire emergencies. It is the perfect multi-purpose door closer for all standa
As it is a legal requirement to keep your fire doors closed in commercial settings the Dorma TS72V Door Closer is vital for fire emergencies. It is the perfect multi-purpose door closer for all standard door designs and constructions. This door closer is supplied without a fixing backplate, it is specially simple and speedy to fix. The spring strength can be personally adapted to the door size by means of an allen key making sure of optimum performance in every situation.
Dorma TS72V Size 2-4 Door Closer (22235901)- Finished in silver
- Non-handed unit
- Closing force, closing speed and latching action adjustable in just a few movements
- Optimum closing speed adjustment with two regulating valves
- Optimum wall and door protection thanks to “thinking” backcheck on TS72VBC
- Maximum door weight – 80kg
- Maximum door width – 1100mm
- Satin stainless
- Polished brass
- Polished chrome
- Coloured
Please call to purchase the TS72V in one of these alternative finishes.
Additional information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 232 × 68 mm |
| Finish | Silver |
| Condition | new |
| Warranty | 1 Year |
| Depth | 45mm |
| CE Marked | Yes |
| Height | 68mm |
| Length | 232mm |
| Power Size | 02-Apr |
| Mechanism | Rack & Pinion |
| Suitable For Application 1 | Yes |
| Suitable For Application 6 / 66 | Yes |
| Suitable For Application 61 | Yes |
| Angle Of Opening | 180? |
| Fire Tested | 120 Minutes |
| Power Adjustable By Spring | No |
| Adjustable Closing Speed | Yes |
| Adjustable Delayed Action | No |
| Weight | 1.2 kg |
| Maximum Door Width | 1100mm |
| Maximum Door Weight | 80 kg |
| Adjustable Latch Action | Yes |
| Delivery Type | Standard |
