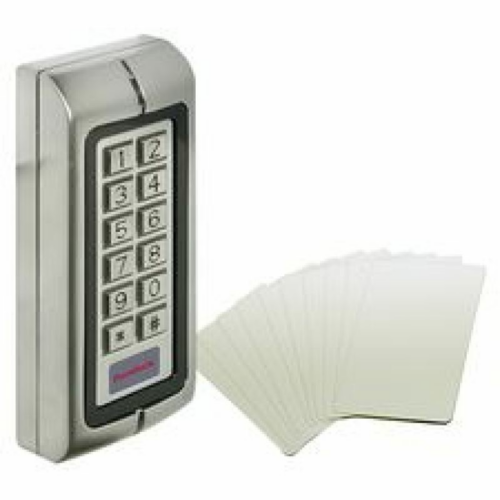

The APX-16P Compact Electronic Keypad With Proximity Built In is a two relay multi-function standalone electronic keypad. It is perfect for mounting both indoors and outdoors in harsh environments. It is kept in a secure, sturdy and vandal-proof zinc alloy electroplated casing. The electronics are completely potted so the keypad is resilient to water and conforms to IP68.

• Waterproof conforms to IP68
• Strong zinc alloy electroplated anti-vandal case
• Two relay operation
• Both of the 2 relays can be programmed for 3 month 3 modes: Card, Pin, Card+Pin
• 1200 users
• Zone 1: up to 1100 Pin & Card holders
• Zone 2: up to 100 Pin & Card holders
• PIN length 4-8 digits: Card type: 125KHz EM card
• Pulse mode & Toggle mode
• Block enrollment, can enroll 1100 consecutive cards with 1 minutes
• Backlight Keypad
• Adjustable door relay output time, alarm time, door open time
• Built in light dependent resistor for anti tamper
• Built in buzzer
• Two relay output for door opening time, door status detecting, open door by button
• Red, Yellow and Green LED display the working status
• Support door bell connection
• 12/24v DC / 18v Power Input
• Two Year Warranty
