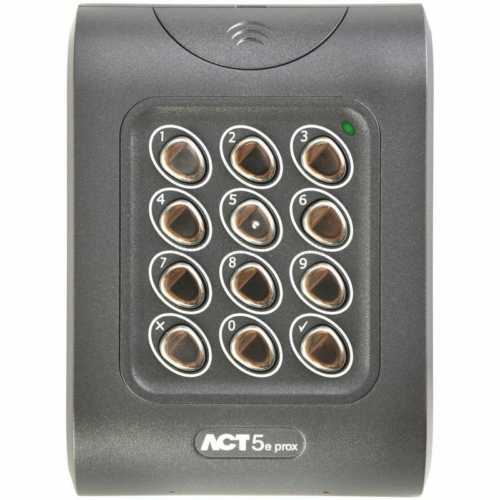

The ACT5e Electronic Keypad 12/24v AC/DC IP67 Rated is an excellent addition to the range of standalone access control products. With it’s “no frills” specification, the only requirements are access and egress. It may be surface or flush mounted on to a standard single gang electrical back box.

• 10 User codes
• Programming Code
• Push to release button input
• Tri-colour LED and Buzzer indicators
• Door relay timer (5 to 255 seconds)
• Incorrect code lockout (20 seconds)
• Potted electronics
• Requires an operating voltage of 12 to 24 volts AC or DC
• 5 amp lock output
• Can be installed either inside or outside (IP67)
• Operating Temperature: -10 to +50
• The ACT 5e can be flush or surface mounted

Dimensions: 100 x 110 x 35mm (WxHxD)

The electronic keypad is the easiest and simplest way for you to manage your building’s security, but with the ACT 5e Electronic Keypad 12/24v AC/DC IP67 Rated it offers solutions for areas where it’s extremely difficult to install compared to other electronic keypads that can only be mounted onto the wall.
